Unique Lighting Systems - MON-RCSOFL-P - Monet Inspira Series Well Light
Monet, Brass, Flood, RGB-CCT, 25' Wire Lead, Painted
Spec Sheet Install Manual
Designed to provide in-ground lighting solutions, the Monet is ideal for uplighting a variety of elements, from trees and shrubs to pillars and other vertical structures. The die cast brass shroud is designed to minimize glare while the adjustable/rotating beam direction allow maximum design control by creating various beam spreads and light output.
Use the Monet as a back, side or accent light for the perfect grazing or shadow effect. Recess the Monet in hardscaping areas for maximum design.
Specifications:
Unique Lighting Systems® reserves the right to modify the design and/or construction of the fixture shown without further notification. © Unique Lighting Systems®
• Solid cast brass and composite construction • High temperature o-rings
• 25’ premium grade direct burial cable • 12W RGB+CCT integrated LED
• Beam adjustment between 15°-40°
• Adjustable/rotating beam direction
• Weathered brass finish standard
• Volt Amps - 13.7 • Lumens - 575*
• Limited lifetime warranty - fixture
• 5 year warranty - LED module *Please note lumens are tested with color temperature setto 6500K (cool white), 100% brightness, spot beam (where applicable).
| Material | Solid cast brass and composite construction. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |

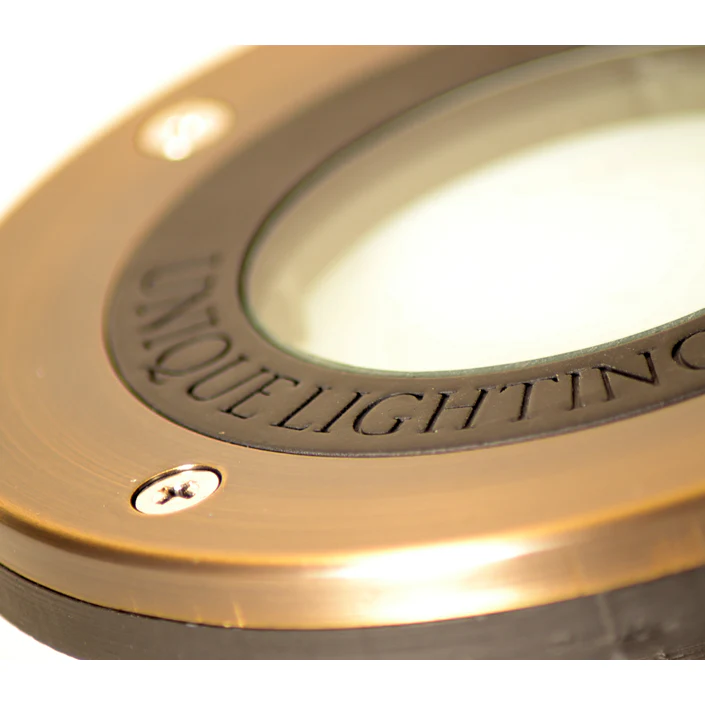

| Shroud | Precision machined grate with captivated stainless steel screws. |
| Lens | Shock resistant glass lens. |
| Lamp |
12W RGB+CCT integrated LED lighting module, 13.7 Volt Amps. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. |
| Lamp Connection | Integrated LED lighting module. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
Description
Monet, Brass, Flood, RGB-CCT, 25' Wire Lead, Painted
Spec Sheet Install Manual
Designed to provide in-ground lighting solutions, the Monet is ideal for uplighting a variety of elements, from trees and shrubs to pillars and other vertical structures. The die cast brass shroud is designed to minimize glare while the adjustable/rotating beam direction allow maximum design control by creating various beam spreads and light output.
Use the Monet as a back, side or accent light for the perfect grazing or shadow effect. Recess the Monet in hardscaping areas for maximum design.
Specifications:
Unique Lighting Systems® reserves the right to modify the design and/or construction of the fixture shown without further notification. © Unique Lighting Systems®
• Solid cast brass and composite construction • High temperature o-rings
• 25’ premium grade direct burial cable • 12W RGB+CCT integrated LED
• Beam adjustment between 15°-40°
• Adjustable/rotating beam direction
• Weathered brass finish standard
• Volt Amps - 13.7 • Lumens - 575*
• Limited lifetime warranty - fixture
• 5 year warranty - LED module *Please note lumens are tested with color temperature setto 6500K (cool white), 100% brightness, spot beam (where applicable).
| Material | Solid cast brass and composite construction. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |
| Shroud | Precision machined grate with captivated stainless steel screws. |
| Lens | Shock resistant glass lens. |
| Lamp |
12W RGB+CCT integrated LED lighting module, 13.7 Volt Amps. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. |
| Lamp Connection | Integrated LED lighting module. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
