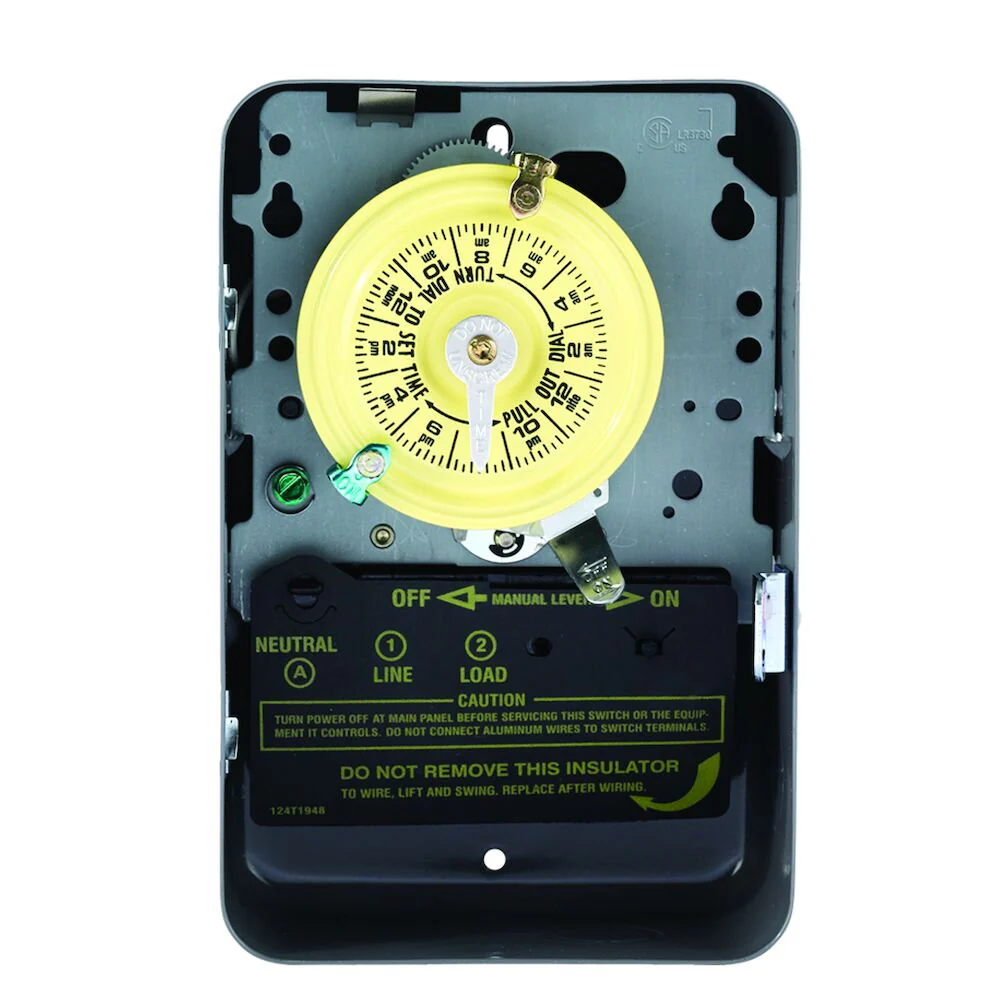

SCRATCH AND DENT Intermatic T101 24-Hour Mechanical Time Switch, 120 VAC, Indoor Metal Enclosure
SCRATCH AND DENT Intermatic T101 24-Hour Mechanical Time Switch, 120 VAC, Indoor Metal Enclosure
Item is fairly worn but still functional. Significant signs of cosmetic damage can include scratches, dents, and worn corners. Item may arrive with damaged packaging or be repackaged. Item may be missing parts, accessories, or instruction manuals.
All items are final sales while supplies last.
Not Eligible for Refunds or Exchanges.
Specifications | Instructions
Intermatic T101 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor Metal Enclosure, 1 Hour Interval
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features:
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
Applications:
-
Indoor Lighting Control
-
Timing/Scheduling ON/OFF
Specifications:
| Input Voltage Range(s) | 120 VAC, 60 Hz | Maximum ON/OFF Operations | 12 |
| Number Of Circuits | 1 | Operation Mode | 24 hour |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Switch Type | SPST |
| Electronic Ballast | 16 A, 120 VAC | Enclosure Type | Indoor type 1 metal |
| Minimum ON/OFF Times | 1 hour | Maximum Power Consumption (W) | 3 W |
| Wiring Option | Terminals | Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Warranty Period | 1-Year limited | Application Compatibilities | HID, LED |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC | Has Manual Override | Yes |
| Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" | Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Motor (Three-Phase) | 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz | Number of Trippers Included | 1 ON/1 OFF |
| Pilot Duty (NO) | 1000 VA, 120-240 VAC, 60 Hz | Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Skipper Wheel | Not Included | Timing Interval | 1 hr |
| Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz |
| Wire Size Max | #8 AWG | Wire Size Min | #14 AWG |
| Operating Temperature Max (°C) | 54 | Operating Temperature Max (°F) | 130 |
| Operating Temperature Min (°C) | -40 | Operating Temperature Min (°F) | -40 |
| Product Depth (in) | 3 7/16 | Product Depth (mm) | 87.3 |
| Product Height (in) | 7 7/8 | Product Height (mm) | 200 |
| Product Width (in) | 5 1/8 | Product Width (mm) | 130.2 |
| Unit Carton Height (in) | 8.25 | Unit Carton Length (in) | 5.5 |
| Unit Carton Weight (lb) | 2.744 | Unit Carton Width (in) | 3.5 |
