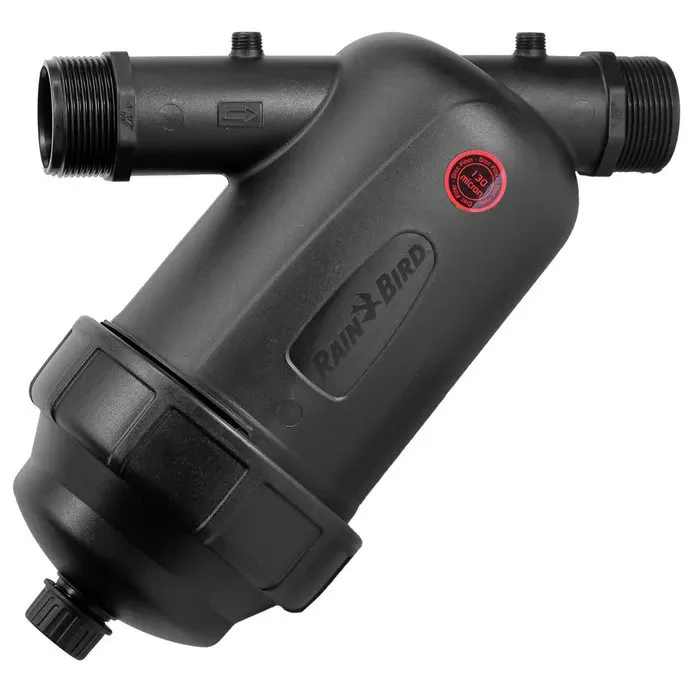

Rain Bird - LCRBY100D - 1" Large Capacity Disc Filter 130 Micron / 120 Mesh
Spec Sheet
These filters provide large filtration capacity for residential, commercial, and municipal drip applications. This means less cleaning and lower maintenance costs. The filter body and cover are made of high impact thermal plastic, rated to withstand water up to 140° F (60° C) and pressures up to 116 psi (8 bar). With flow rates ranging from 33 gpm to 110 gpm, these filters are perfect for larger drip irrigation zones.
Features
- Provides extra large filtration capacity for residential, commercial, and municipal applications
- Durable filters can be easily removed for cleaning, significantly reducing cleaning time
- Disc filters can decompress for easy cleaning
- Auxiliary connection with a threaded cap can be drilled to allow draining or depressurization
Operating Range
- 1” Model: Maximum flow: Up to 26 gpm (6 m3/hr)
-
-Filtering surface (disc): 28 in2 (180cm2)
- Maximum Pressure: 116 psi (8 bar)
- Maximum Temperature: Up to 140° F (60° C)
Filtration
- Stainless Steel Screen Filter: 120 Mesh (130 Micron)*
- Plastic Filter Discs: 120 Mesh (130 Micron
- * Screen not available in 1” model
Dimensions:
- Height: 6.8"
- Width: 7.5"
- Depth: 3.3"
Original: $49.30
-65%$49.30
$17.25
Description
Spec Sheet
These filters provide large filtration capacity for residential, commercial, and municipal drip applications. This means less cleaning and lower maintenance costs. The filter body and cover are made of high impact thermal plastic, rated to withstand water up to 140° F (60° C) and pressures up to 116 psi (8 bar). With flow rates ranging from 33 gpm to 110 gpm, these filters are perfect for larger drip irrigation zones.
Features
- Provides extra large filtration capacity for residential, commercial, and municipal applications
- Durable filters can be easily removed for cleaning, significantly reducing cleaning time
- Disc filters can decompress for easy cleaning
- Auxiliary connection with a threaded cap can be drilled to allow draining or depressurization
Operating Range
- 1” Model: Maximum flow: Up to 26 gpm (6 m3/hr)
-
-Filtering surface (disc): 28 in2 (180cm2)
- Maximum Pressure: 116 psi (8 bar)
- Maximum Temperature: Up to 140° F (60° C)
Filtration
- Stainless Steel Screen Filter: 120 Mesh (130 Micron)*
- Plastic Filter Discs: 120 Mesh (130 Micron
- * Screen not available in 1” model
Dimensions:
- Height: 6.8"
- Width: 7.5"
- Depth: 3.3"
