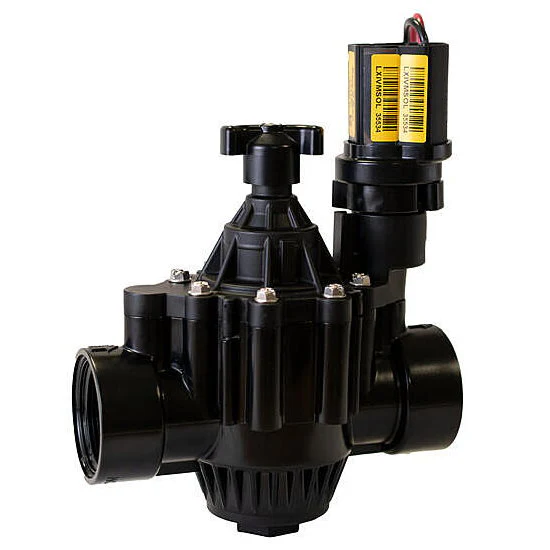

Rain Bird - IVM100PGA - 1" PGA NPT Valve with IVM Solenoid
Spec Sheet
Best in Class Valves with Preinstalled IVM-SOL
Rain Bird PGA Series valves are now available with the Integrated Valve Module "smart solenoid" (IVM-SOL) preinstalled. The new IVM Smart Valves, when paired with the ESP-LXIVM Two-Wire controller, eliminate decoders resulting in 50% fewer wire splices, which reduces system cost and improves reliability. During operation, the IVM-SOL provides two-way communication between the valve and controller to provide advanced diagnostic capability and faster response time.
Best-in-Class Valves
- With industry-leading reliability and performance, the Rain Bird PGA Series of commercial valves are now even better with preinstalled IVM-SOL
Next Generation Two-Wire System
- The ESP-LXIVM Two-Wire Controller is the next leap forward—simplifying installation, improving reliability and enabling more troubleshooting features that save time
Performance and Reliability
- With 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoder
Features
- Globe and angle configuration for flexibility in design and installation
-
PVC and glass reinforced nylon construction
-
Filtered pilot flow to resist debris and clogging of solenoid ports
-
Slow closing to prevent water hammer and subsequent system damage
-
Manual internal bleed operates the valve without allowing water into the valve box
-
One-piece solenoid design with captured plunger and spring for easy servicing prevents loss of parts during field service
-
Non-rising flow control handle adjusts water flows as needed
-
Normally closed, forward flow design
Options (order separately)
- Accommodates optional, field installed PRS-D pressure regulating module
Specifications:
- Flow: 2 –150 gpm (0.45 to 34.05 m3/h; 7.8 to 568 l/m)
- Flow with PRS-D: 5 –150 gpm (1.14 to 34.05 m3/h; 19.2 to 568 l/m)
- Temperature: up to 110° F (43° C)
- Ambient Temperature: up to 125° F (52° C)
Electrical Specifications
- Power: 26.5 Vrms 50/60 Hz (cycles/sec)
- Inrush current: <40mA (Peak)
- Quiescent current: <0.4mA (ave.)
- Voltage Range: 15.6 - 29.2 Vrms
- Compatible with LXIVM controllers
Dimensions:
- Height: 7.25"
- Length: 3.25"
- Width: 5.5"
Original: $160.05
-65%$160.05
$56.02
