Rain Bird - MDCFTEE - Easy Fit Tee
Complete system of compression fittings and adapters for all tubing connection needs in a low-volume system.
Reduces inventory costs: Multi-diameter compression fittings work with a wide range of 1/2" polyethylene tubing sizes (0.630" to 0.669" or 16mm - 17mm outside diameter).
Saves time and effort: 50% less force is required to connect tubing and fittings versus competitive compression fittings. Adapters swivel for easy installation.

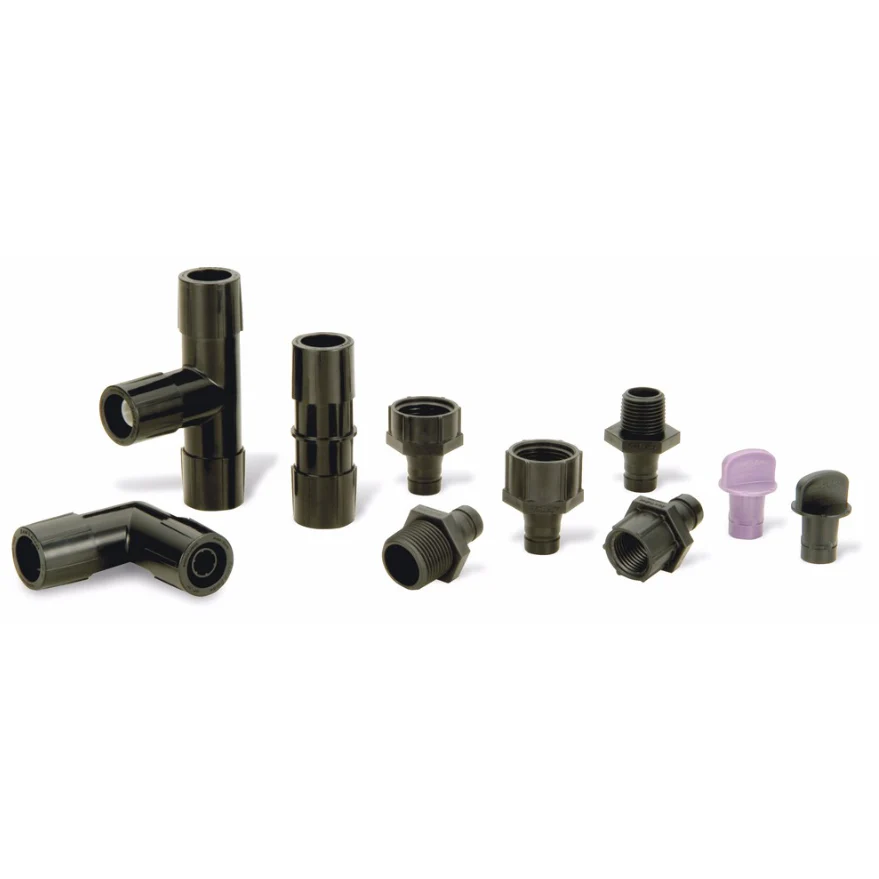

Provides increased flexibility: Just three Easy Fit Fittings and five Easy Fit Adapters are needed to make over 160 combinations of connections, accommodating countless installation and maintenance situations.
- Easy Fit Compression Fitting System - 1/2 in. Male Pipe Thread Adapter
- Faster and easier to install—requires up to 50% less force to install tubing, making your installation project faster and easier
- Great for maintenance and retrofitting existing systems
- Works with virtually any manufacturer's 1/2 in. tubing, where the outside diameter ranges from .630" to .669" (16mm to 17mm)
- The eight components of the Easy Fit System (3 Fittings and 5 Adapters) can be built into over 160 different configurations
- Not compatible with Rain Bird XBS or XT700 tubing
- Easy Fit Adapters are not barbed fittings; they are to be used only with Easy Fit Compression Fittings
Easy Fit Install Instructions:
Step 1
Select an Easy Fit Compression Fitting—either a coupling, an elbow or a tee.
Step 2
Select the Easy Fit Compression Adapter to connect the fitting to any 1/2" (12,7 mm) or 3/4" (19,05 mm) male- or female-threaded component (for example, a threaded PVC riser).
Step 3
After selecting the right Easy Fit Compression System components, simply assemble the two using little effort.
Step 4
Easily insert any manufacturer’s drip tubing from .630" to .669" O.D. (16 mm to 17 mm) into the fitting and connect onto the threaded component. Simple. Fast. Done.
Specifications:
- Flow Control: 0-6 GPM
- Pressure Rating/Range: 0-60
Original: $2.66
-65%$2.66
$0.93
Description
Complete system of compression fittings and adapters for all tubing connection needs in a low-volume system.
Reduces inventory costs: Multi-diameter compression fittings work with a wide range of 1/2" polyethylene tubing sizes (0.630" to 0.669" or 16mm - 17mm outside diameter).
Saves time and effort: 50% less force is required to connect tubing and fittings versus competitive compression fittings. Adapters swivel for easy installation.
Provides increased flexibility: Just three Easy Fit Fittings and five Easy Fit Adapters are needed to make over 160 combinations of connections, accommodating countless installation and maintenance situations.
- Easy Fit Compression Fitting System - 1/2 in. Male Pipe Thread Adapter
- Faster and easier to install—requires up to 50% less force to install tubing, making your installation project faster and easier
- Great for maintenance and retrofitting existing systems
- Works with virtually any manufacturer's 1/2 in. tubing, where the outside diameter ranges from .630" to .669" (16mm to 17mm)
- The eight components of the Easy Fit System (3 Fittings and 5 Adapters) can be built into over 160 different configurations
- Not compatible with Rain Bird XBS or XT700 tubing
- Easy Fit Adapters are not barbed fittings; they are to be used only with Easy Fit Compression Fittings
Easy Fit Install Instructions:
Step 1
Select an Easy Fit Compression Fitting—either a coupling, an elbow or a tee.
Step 2
Select the Easy Fit Compression Adapter to connect the fitting to any 1/2" (12,7 mm) or 3/4" (19,05 mm) male- or female-threaded component (for example, a threaded PVC riser).
Step 3
After selecting the right Easy Fit Compression System components, simply assemble the two using little effort.
Step 4
Easily insert any manufacturer’s drip tubing from .630" to .669" O.D. (16 mm to 17 mm) into the fitting and connect onto the threaded component. Simple. Fast. Done.
Specifications:
- Flow Control: 0-6 GPM
- Pressure Rating/Range: 0-60
