Rain Bird - LDQ0812100 - 1/4" 0.8 GPH Landscape Dripline 12" Spacing, 100 ft Coil

Spec Sheet

Rain Bird's 1/4" Dripline is a perfect choice for small-sized areas such as planter boxes, container gardens, loops around trees, vegetable gardens and shrubs.

XQ 1/4 Inch Drip Tubing Features Include:

• Simple to use, as the flexible tubing makes watering pots and container gardens easy.
• 1/4" tubing size complements the aesthetics of any garden.
• Clog resistance through built-in filtration and two outlet holes, 180 degrees apart.
• Brown tubing complements Rain Bird XF Dripline.
• Unobtrusive size and flexibility provide a low-profile, aesthetically pleasing means to irrigate plants.
• Works with Rain Bird 1/4" barbed Fittings.
• Comes in 2 spacings (6" (15.25 cm ) and 12" (30.5 cm)) and a coil length of 100' (30.5 m) for design flexibility.

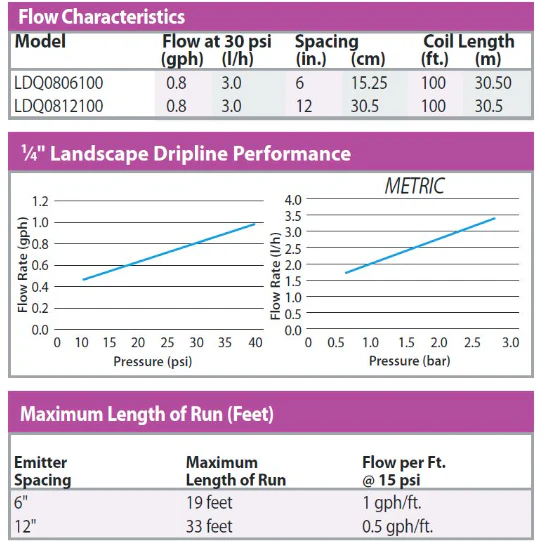

Operating Range:

• 10 to 40 psi (0.7 to 2.7 bar)
• Flow rate at 30 psi (2.0 bar): 0.8gph (3.0 l/h)
• Required filtration: 200 mesh (75 micron)

Specifications:

• Outside diameter: 0.250" (6 mm)
• Inside diameter: 0.170" (4 mm)
• Wall thickness: 0.040" (1 mm)
• Spacing: 12"
• Length: 100' (30.5 m) coils

Specifications:

• Flow Control: 0.8 GPM
• Pressure Rating/Range: 10 - 40 PSI
