King Innovation - 95145 - AlumiConn 3-Port Al/Cu Wire Connectors (1000-Pack)
Looking to do a large job? Contact us today! Email [email protected] to get a customized quote.

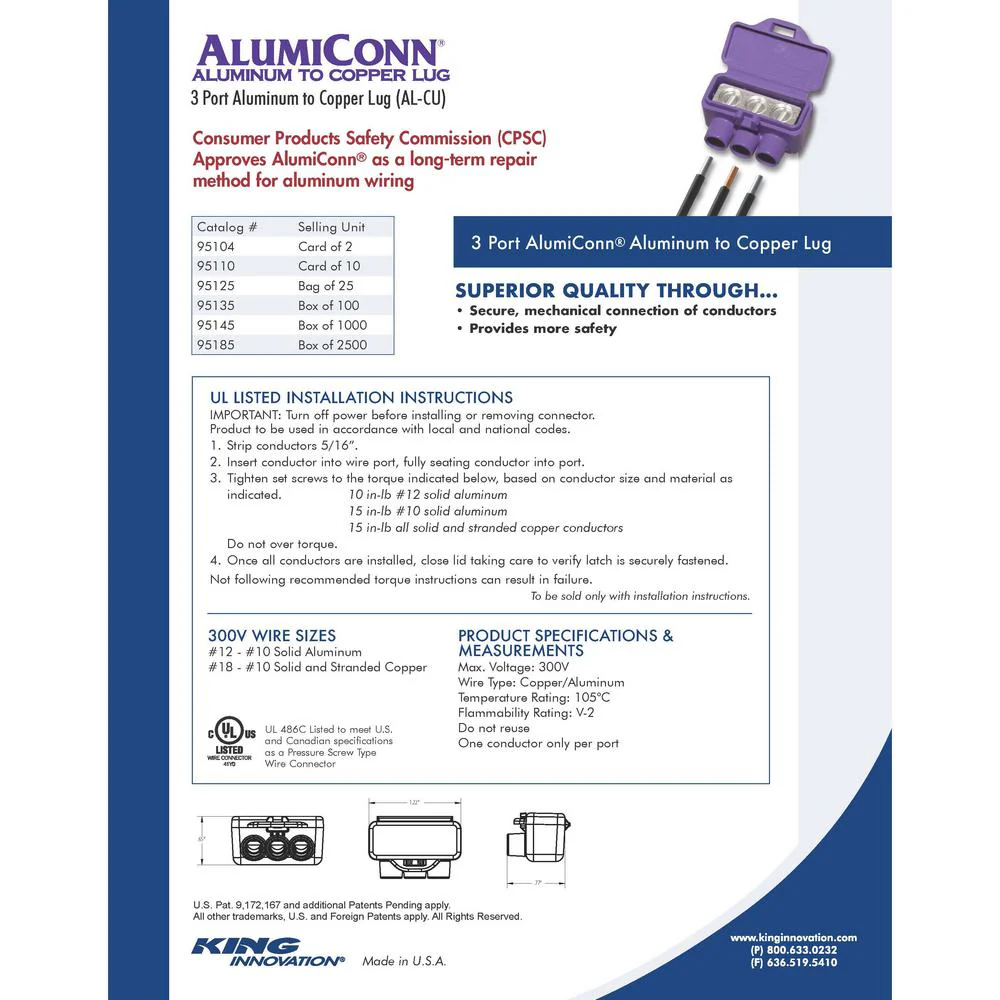

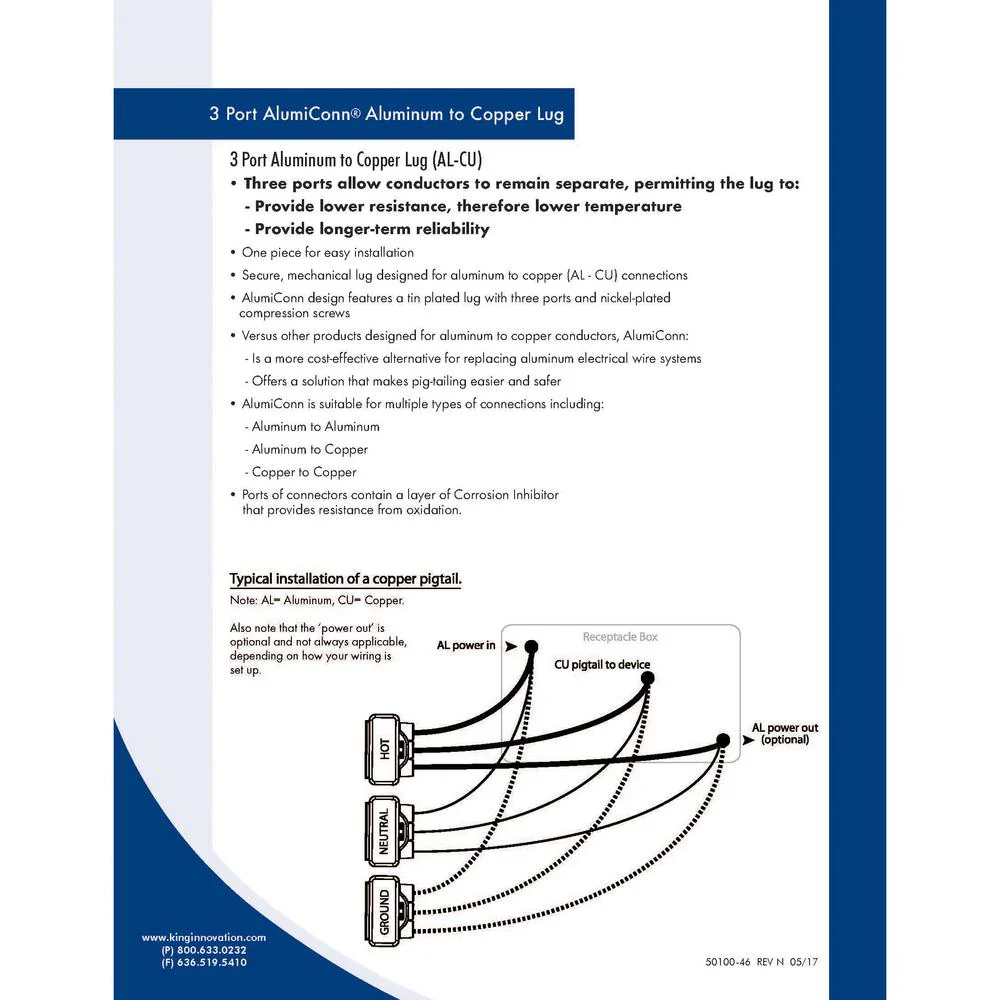

Spec Sheet Install Manual
Product Overview

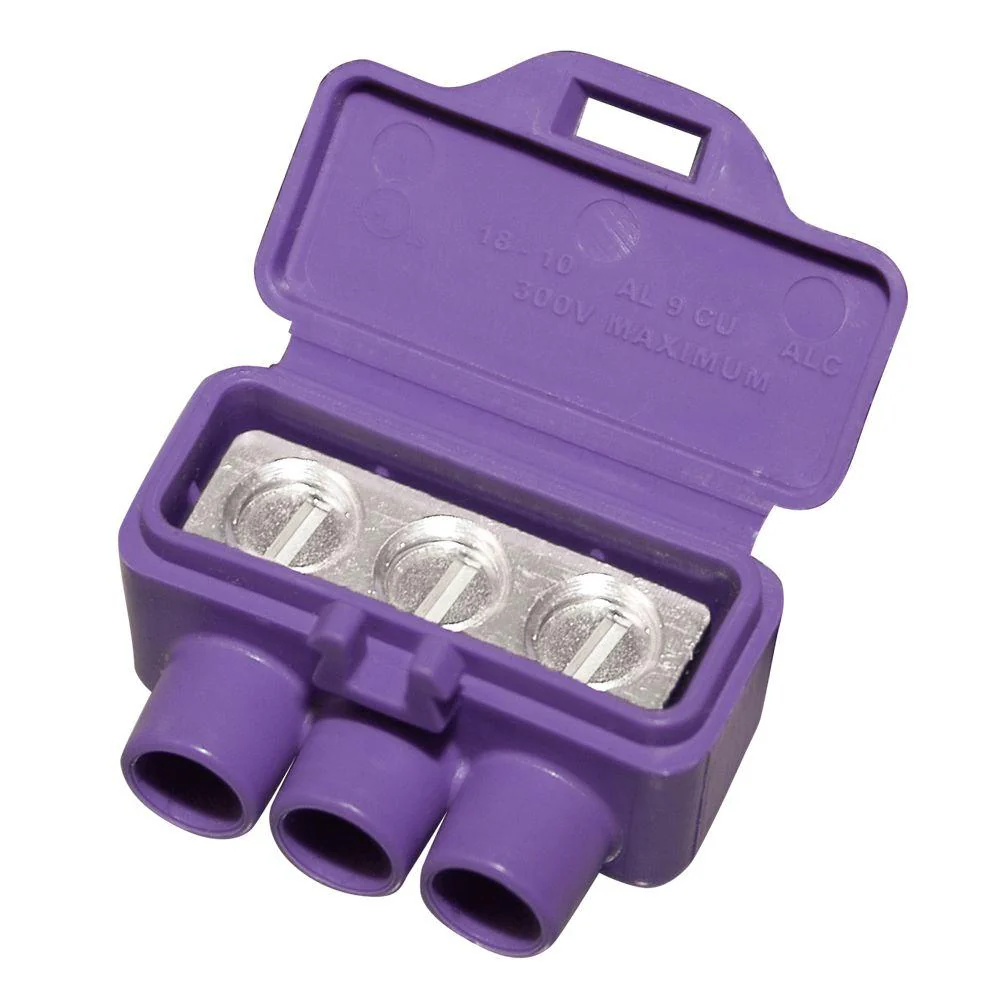

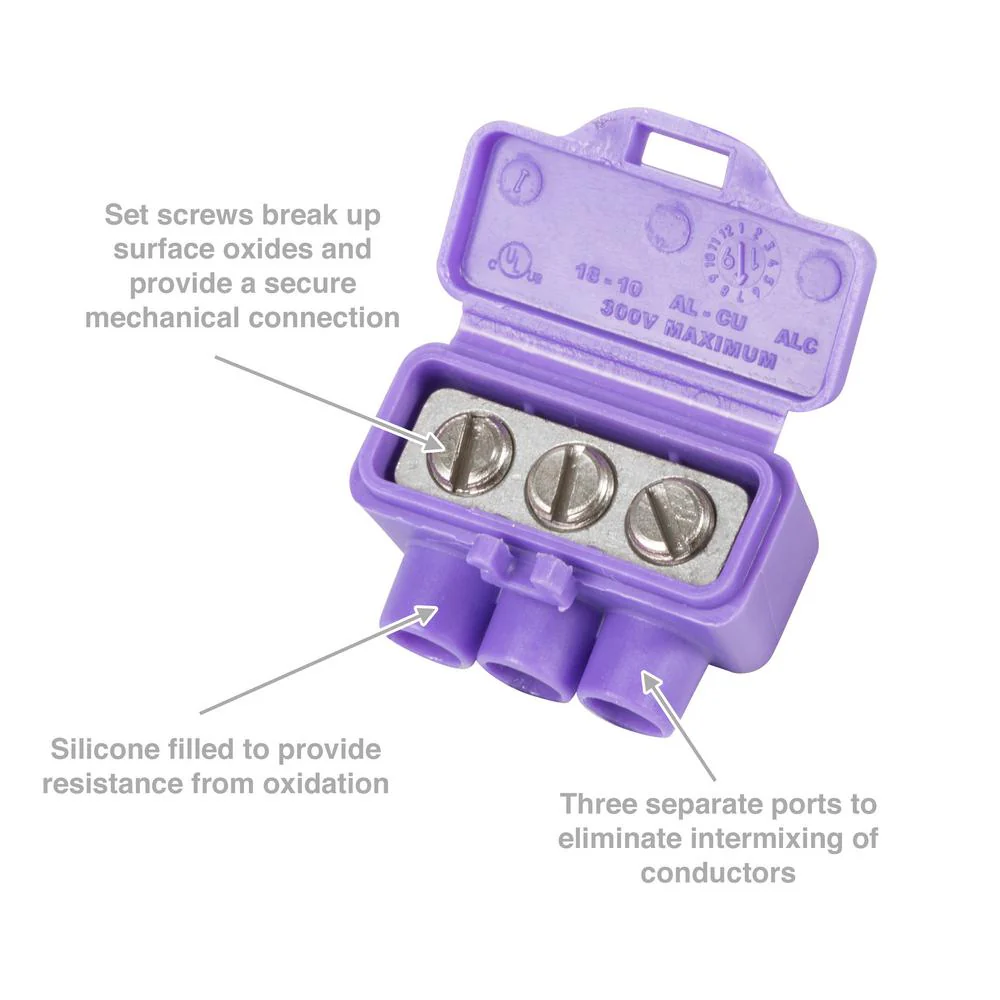

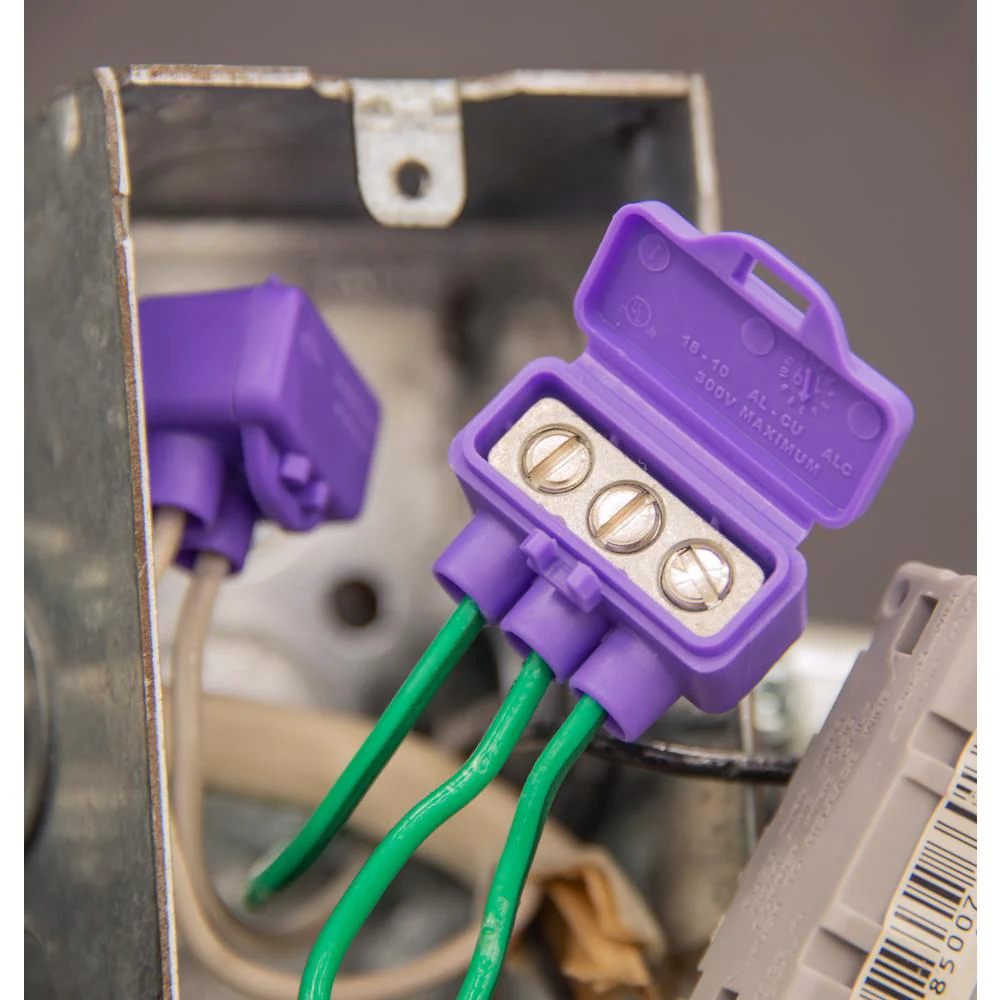

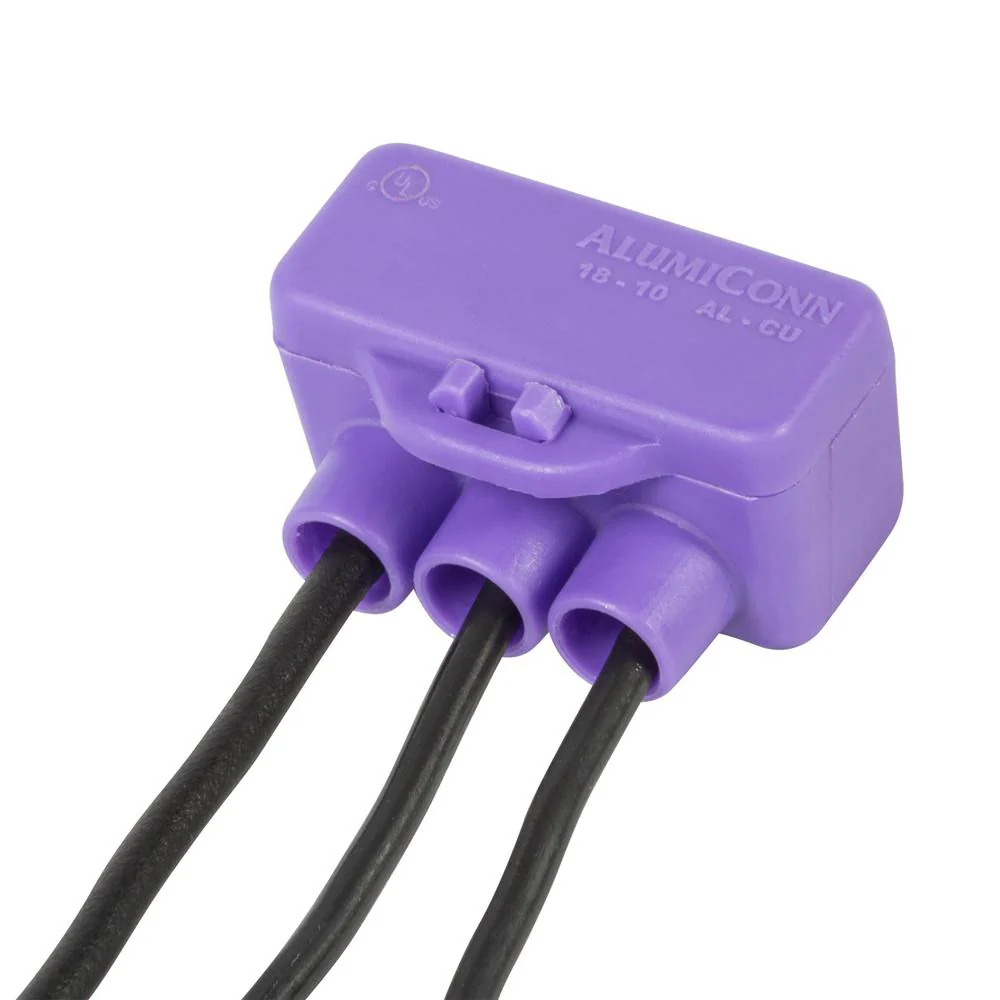

King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. Manufactured in Missouri, AlumiConn is a lug style connector with three separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.
- Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
- Most cost-effective solution for repairing aluminum wiring systems
- Three ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
- Secure mechanical connection
- Contains a layer of corrosion inhibitor that provides resistance from oxidation
- Max Voltage 300V
- Aluminum wire range: #12 - #10 solid AWG
- Copper wire range: #18 - #10 solid and stranded AWG
- UL486C Listed to meet US and Canadian standards
- Temperature rating of insulating material: 105 degrees Celsius

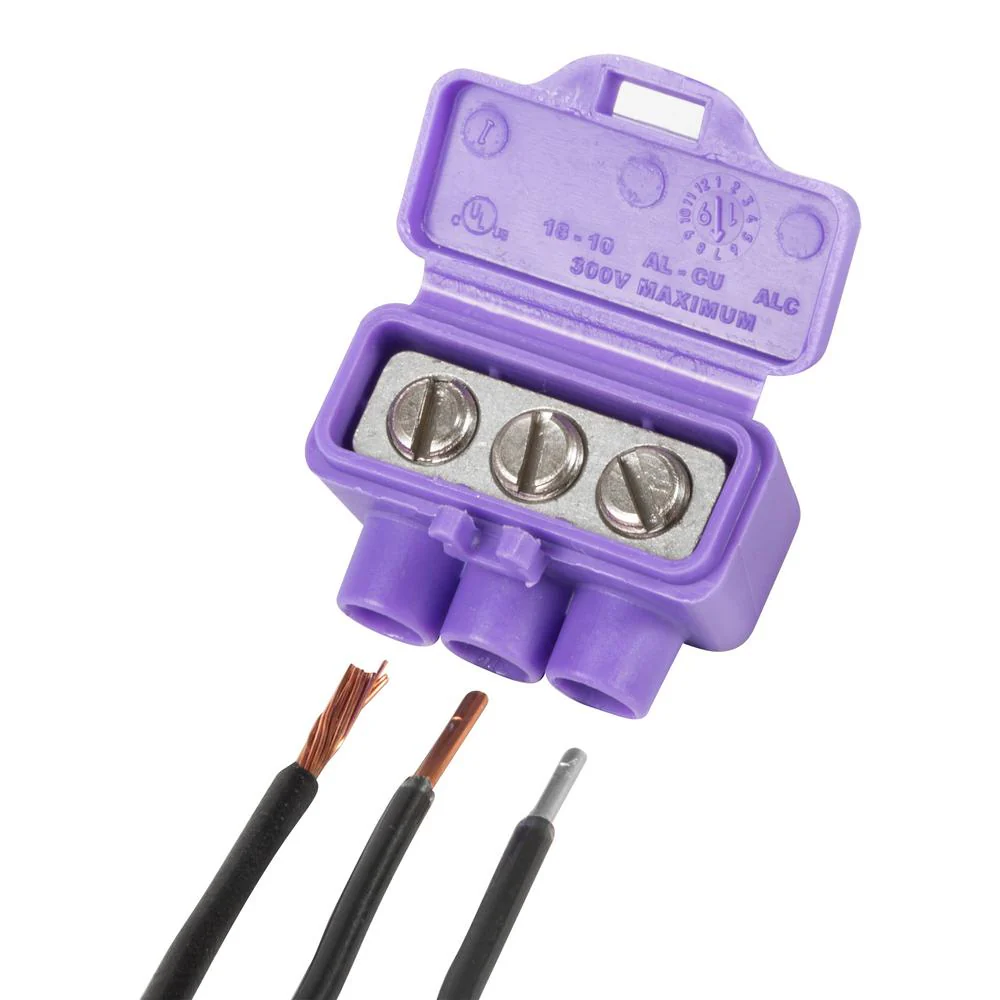

- Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices

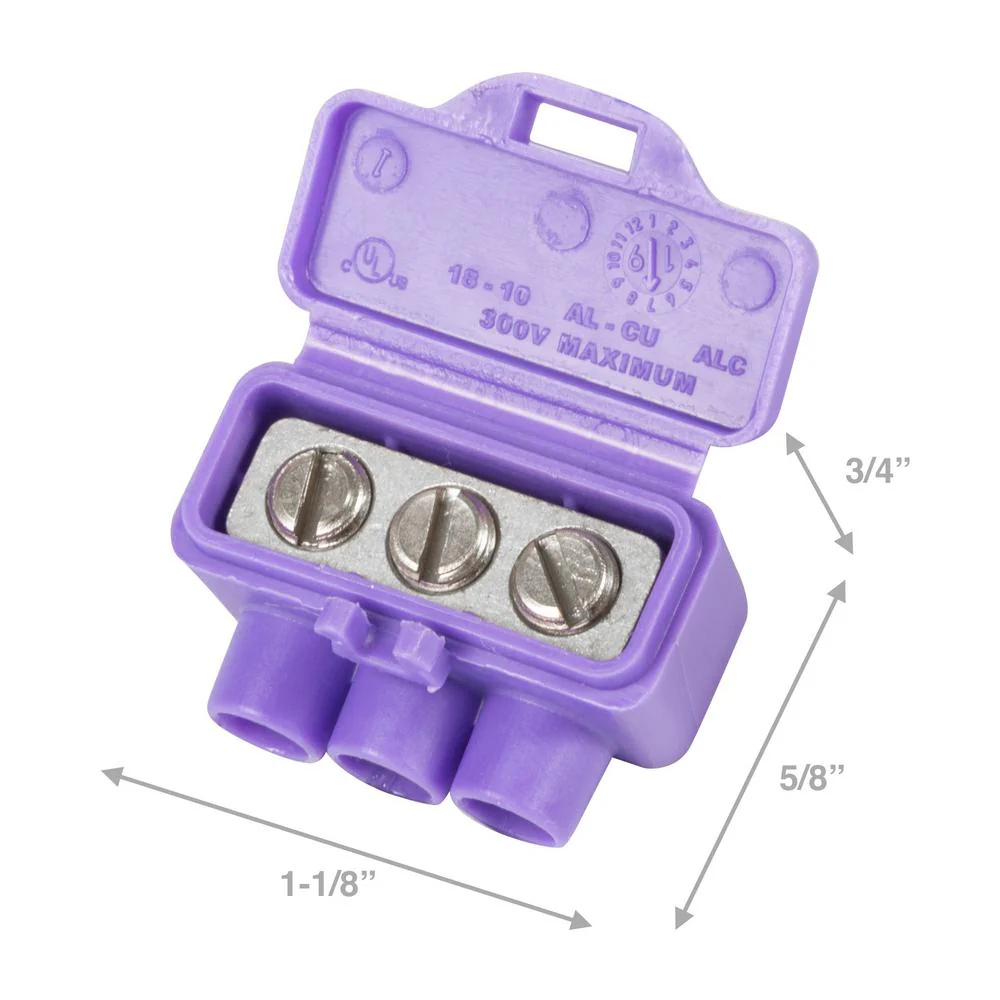

Dimensions
Details
Warranty / Certifications
Original: $3,999.95
-65%$3,999.95
$1,399.98
