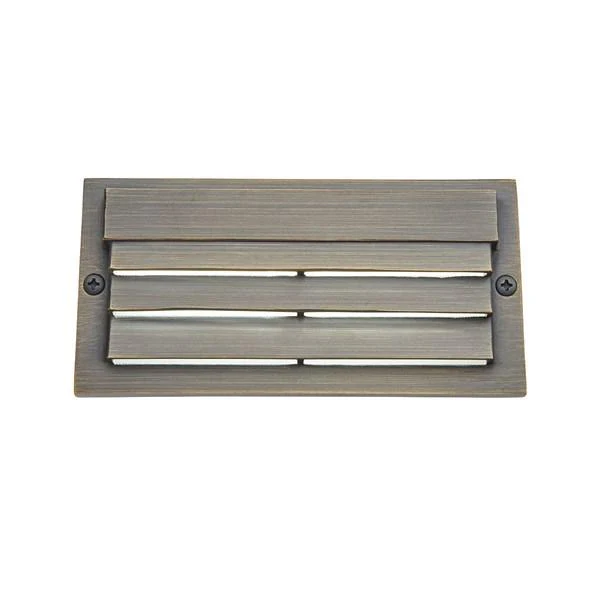

Kichler - 16171CBR30 - 3000K LED Louvered Surface Mount Step Light Centennial Brass
Spec Sheet Install Manual
The 12V Integrated LED Louvered Surface Mount Step Light offers a low-profile construction without a junction box. This stylish design makes installation simple for retrofit or new construction and offers even light dispersion. This light comes in a Centennial Brass finish.
-
The 12V Integrated LED Louvered Surface Mount Step Light offers a low-profile construction without a junction box. This stylish design makes installation simple for retrofit or new construction.
- Small profile design for easy installation allows you to mount to surfaces like steps, decks, and retaining walls without cutting a junction box.
- Equipped with removeable mounting template for extra ease of installation.
- Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements – helping to extend the life of the product.
- Custom optics with a diffused lens provides smooth, uniform light distribution to eliminate glare and hotspots
- 4,000-volt system surge protection protects against power surges and irregularities, especially when paired with one of our transformers
- Versatile IP67 rated design provides protection against dust particles and temporary submersion in case of flooding
- What's in the Box: LED Step Light and two gel-filled wire nuts
Mounting/Installation
- Lead Wire Length: 84"
- Location Rating: Wet
- Direct Wire: Yes
- Wire Connectors: Wire Nuts
Dimensions
- Height: 3.00"
- Length: 6.00"
- Width: 0.75"
Light Source
- Delivered Lumens: 7
- Expected Life Span (Hours): 50000
- Lamp Included: Integrated
- # of Bulbs/LED Modules: 1
- Volt-Amperes (VA): 1.45
Product/Ordering Information
- SKU: 16171CBR30
- Finish: Centennial Brass
- UPC: 783927003292
Photometrics
- Color Rendering Index: 80
- Delivered Efficacy (Lumens/Watt): 8
Electrical
- Input Voltage: 12.00 V
- Operating Voltage Range: 9-15
- Voltage: 12 V
Housing
- Primary Material: Brass
- Switch Type: N/A
Original: $159.99
-65%$159.99
$56.00
