Kichler - 16140SS30 - 12V 3000K 100 Lumen LED Mini All-Purpose Recessed Light Stainless Steel

Spec Sheet

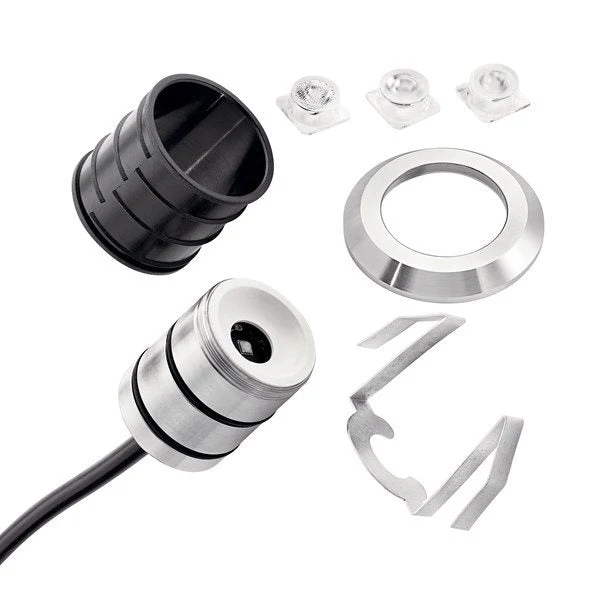

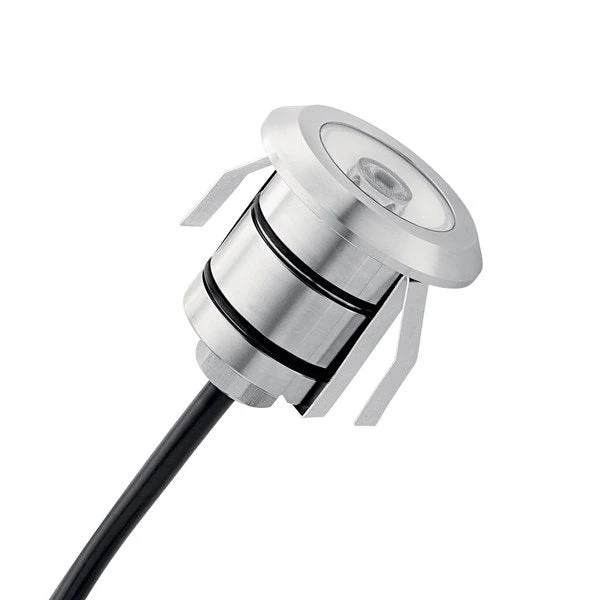

The 12V integrated LED All-Purpose Recessed fixture provides the performance and reliability you need for your next project or installation. This fully sealed and encapsulated fixture has 100 lumen output with a 3000K CCT, and comes in a Stainless Steel (SS) finish. The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it. A removeable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation. IP68 rated against dust and water ingression. Additional features include a 6000kV surge protection built-in to guard against power irregularities and a 9-15-volt operating range.

Dimensions:

• Height: 2.25"

• Width: 2.25"


Electrical:

• Operating Voltage Range: 9-15 VAC
• Voltage: 12V

Housing:

• Primary Material: Stainless Steel
• Finish: Stainless Steel

Light Source:

• Delivered Lumens: 100
• Expected Life Span (Hours): 50,000
• Lamp Included: Integrated
• Light Source: LED

• Max or Nominal Watt: 1.5W
• # of Bulbs/LED Modules: 1
• Max Wattage/Range: 1.5W
• Volt-Amperes (VA): 3.50

Mounting/Installation:

• Lead Wire Length: 72"
• Location Rating: Wet

Photometrics:

• Color Rendering Index: 80
• Delivered Efficacy (Lumens/Watt): 50

• Kelvin Temperature: 3000K
