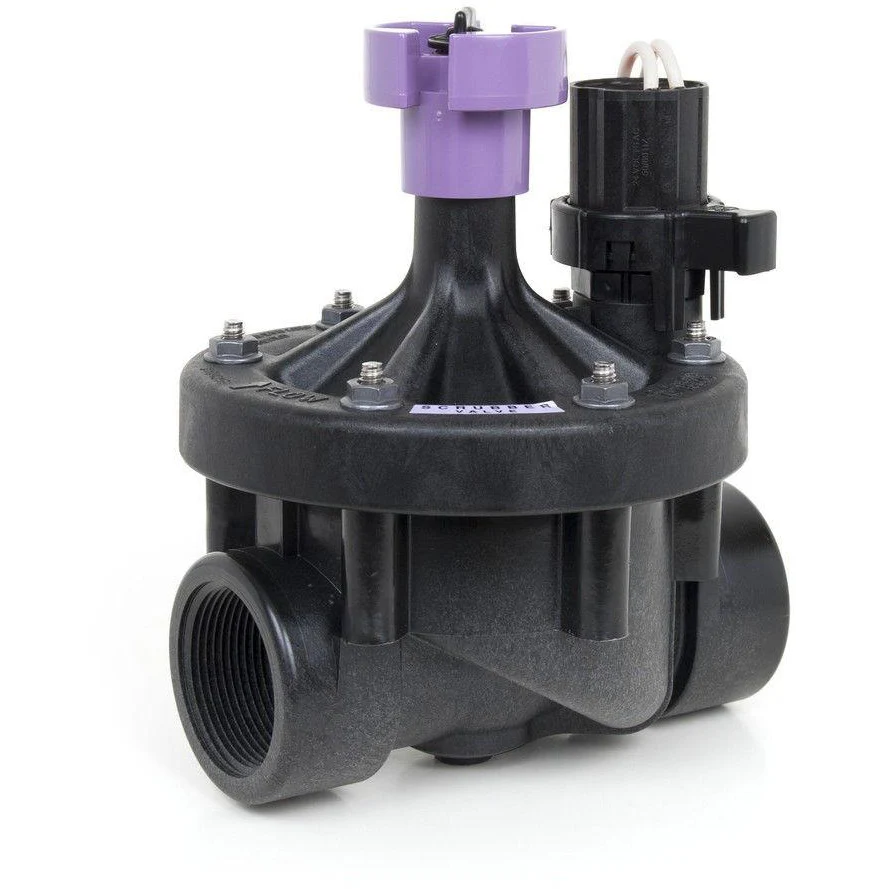

Rain Bird 200PESBR 2" Inlet Inline Plastic Industrial Irrigation Valve For Reclaimed Water

Rain Bird 200PESBR 2 Inch Reclaimed Water Scrubber Valve

Handle demanding reclaimed water applications with the robust Rain Bird 200PESBR 2" Inlet Inline Plastic Industrial Irrigation Valve. Specifically designed for non-potable systems, this valve features the durability and reliability Rain Bird's PESB series is known for, with components suitable for reclaimed water use. Easily identifiable by its purple flow control handle, the 200PESBR ensures compliance and safety in reclaimed water zones.

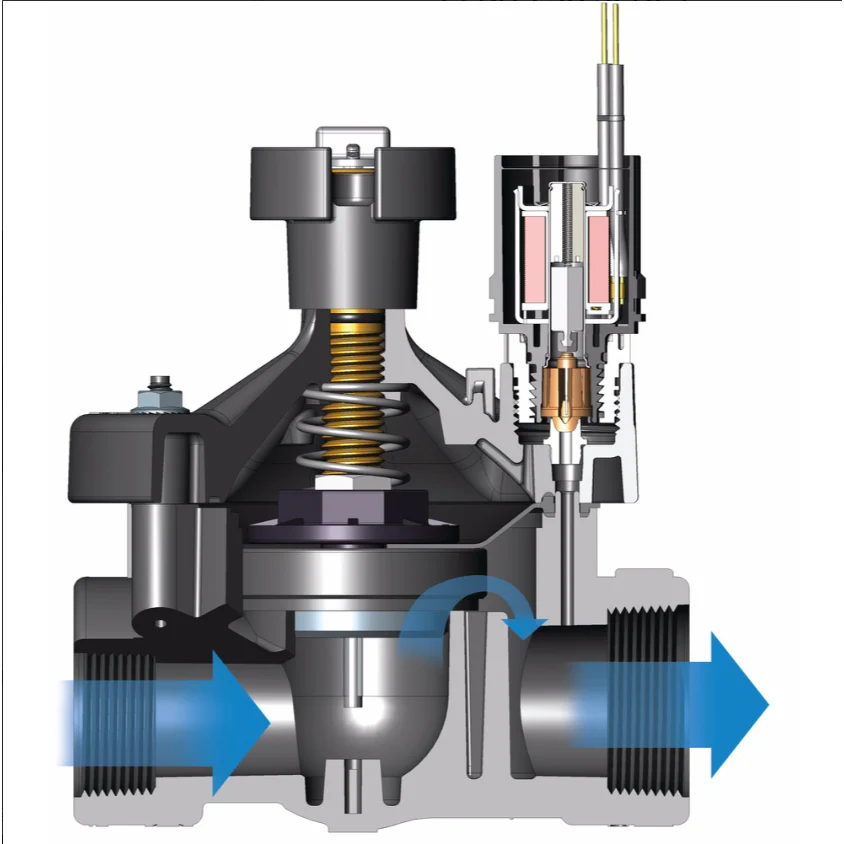

Constructed from heavy-duty, glass-filled nylon, this industrial-grade valve operates reliably under pressures up to 200 psi. The patented scrubber mechanism actively cleans the stainless steel screen with every cycle, preventing debris buildup and ensuring dependable operation, even in dirty water conditions typical of reclaimed sources. Its robust, fabric-reinforced rubber diaphragm provides long-term, leak-proof performance.

Maintenance is simplified with captured bonnet screws and easy access to internal components without removal from the pipeline. The Rain Bird 200PESBR is the ideal choice for commercial landscapes, parks, golf courses, and large residential systems utilizing reclaimed or non-potable water sources, offering consistent performance and peace of mind.

*One solenoid handle per order

Features:

• 2 in. (50/60) chlorine-resistant valve for reclaimed water irrigation applications
• Plastic diaphragm and scrubber components molded of chlorine- and chemical-resistant plastic material
• Durable glass-filled nylon construction for long life and heavy-duty performance at 200 psi (13,80 bars) pressure
• Stainless steel studs molded into the body. Bonnet can be attached and removed easily without damaging threads
• One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
• External bleed protects the solenoid ports from debris when system is flushed
• Purple flow control handle standard on PESB-R Series valves

Rain Bird 200PESBR Additional Features:

• Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first.
• Slow closing to prevent water hammer and subsequent system damage.
• Scrubber mechanism scrapes stainless steel screen clean to break down grit and plant material.
• Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bars).

Specs:

• Valve Size: 2 in
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Options: Dirty Water
• Valve Series: PESB-R
• Operating Temperature: Up to 150° F (66° C)
• Electrical Specifications:
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 Ohms
• Flow Range:
• Without PRS-D: 0.25 to 200 GPM (0,06 to 45,40 m3/h; 0,02 to 12,60 l/s)
• With PRS-D: 5 to 200 GPM (1,14 to 45,40 m3/h; 0,32 to 12,60 l/s)
• Operating Pressure: 20 to 200 psi (1,38 to 13,80 bars)
